Valve Blocks on Ford Engines

Click on pictures to enlarge

Before 1 After
Ford FSD, Bosch 4 port filter’ Ford FSD, Bosch 4 port filter

EXAMPLE 1

The Before and After photos of the filter assembly were taken on an engine in our workshop from a Transit van. (Note, for a marine application the plastic pipes would have to changed to comply with the BSS)

Before 1 Before 2
Ford FSD, Bosch 4 port filter Ford FSD, Bosch 4 port filter

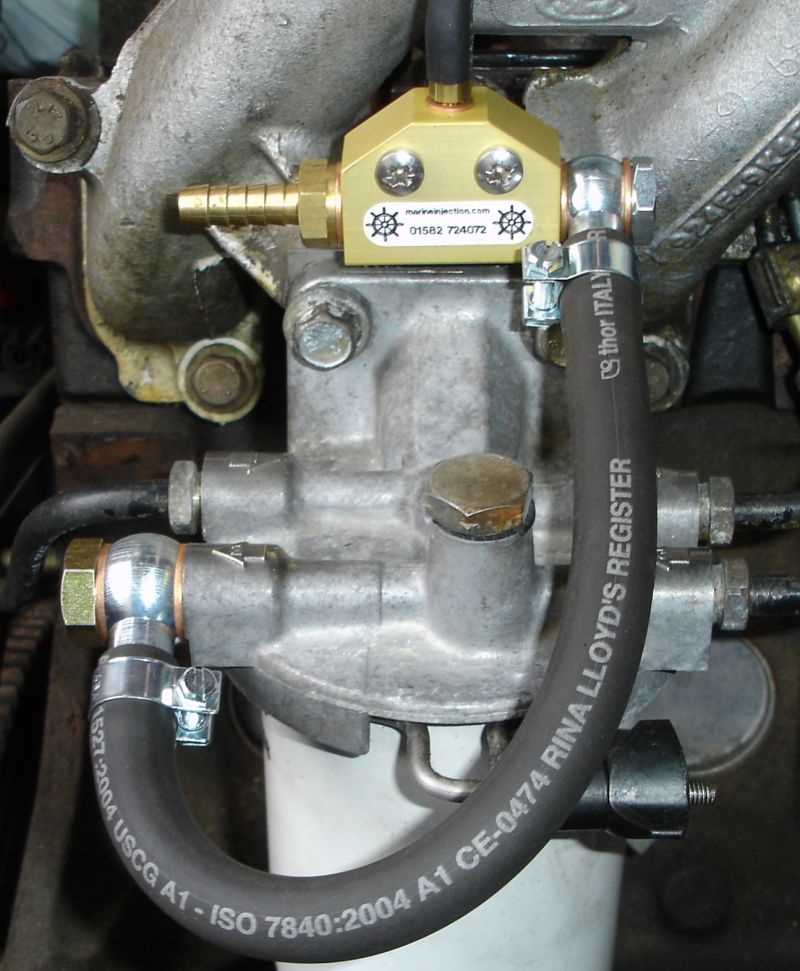

After 1 After 2 After 3 After 4
Ford FSD, Bosch 4 port filter’ Ford FSD, Bosch 4 port filter’ Ford FSD, Bosch 4 port filter’ Ford FSD, Bosch 4 port filter


EXAMPLE 2

Ford FSD, Bosch 4 port filter

We received this Email photo enquiry about a Ford FSD 2.5Ltr (Transit) engine.

This is a good example of how NOT to do it!

We supplied the valve, mounting bracket, fittings and pipe.

We also gave suggestions (half a page) on re-routing the pipe work to make it 'nicer' and comply to the BSS.

Unfortunately the boat owner could not provide any 'After' photos.
